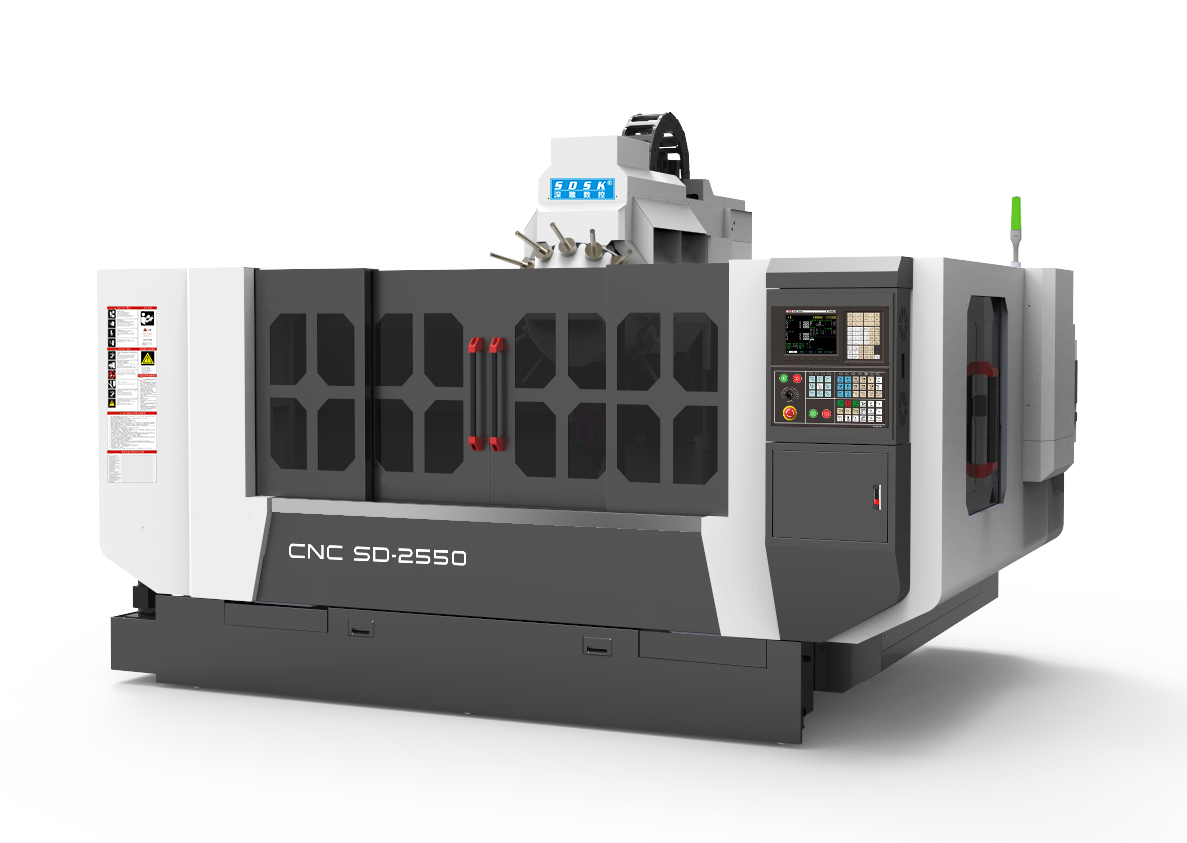

Aluminum profile processing center SD2550/BT30/BT40

Aluminum profile processing center SD2550/BT30/BT40

Description


Machine Introduction:

The SD model series is a large aluminum profile processing center specially designed for customers; Equipped with Taiwan Shengjie 16 bit UFO style tool library, the tool changing speed is 2 seconds, greatly improving production efficiency; The motion mode is to move the Y-axis workbench forward and backward, the X-axis machine head moves left and right, and the Z-axis spindle moves up and down. Body cast iron structure; Adopting deep carving CNC system and servo motor; The three-axis adopts Shangyin/Yintai precision linear guide, precision ball screw, German coupling, advanced spindle refrigeration system, automatic lubrication system, coolant circulating water spray and spray system, ensuring higher processing accuracy, speed and stability;; Especially suitable for precision engraving, milling, drilling, and tapping of various types of steel, copper, aluminum, acrylic, plastic and other parts< Br/>
2、 List of Main Machine Configuration (Unit: mm)
Number
Regulations; Grid; Speak; bright
quantity
1.
Cast iron bed body, outer cover made of 2mm steel plate, baked paint (stainless steel water tank)
full set
2.
Deep carving CNC system (Frankish technical foundation)/3-axis servo motor/spindle servo drive
full set
3.
Use Taiwan Shangyin/Intime for XYZ axis& Nbsp; Precision linear guide rail
full set
4.
Taiwan TBI/Shangyin/Intime for XYZ axis& Nbsp; Precision grade grinding ball screw
full set
5.
Taiwan Weilong Direct Connection Short Nose Spindle/Equipped with 5.5KW; BT30/100 spindle servo drive 20000rpm
full set
6.
Taiwan Shengjie 16 bit UFO style knife magazine
1 set
7.
Imported NSK/GMI& Nbsp; P-grade angular contact paired bearings
full set
8.
Spindle water cooler
1 unit
9.
Distribution cabinet constant temperature system
full set
10.
Schneider Electric Accessories
full set
11.
Electronic handwheel
1 unit
12.
Knife alignment instrument
1 unit
13.
X-axis with three proof cloth organ cover, Y/Z-axis with steel plate cover
1 set each
14.
X/Y/Z axis plastic drag chain
1 set each
15.
Automatic lubrication grease pump
1 set
16.
air filter
2 sets
17.
Water spraying and water air mixing spray device
2 sets each
18.
Water pump LDPB 4-18/480W
1 set
19.
Machine tool accessories
set
20.
BT30 knife handle
Two
&Nbsp< Br/>
3、 Main technical parameters of the equipment: (unit: mm)
model
SD1850
SD2550
SD3050
SD3550
SD4550
Appearance - length * width * height
3680 * 2600 * 2500
3750 * 2600 * 2500
4450 * 2520 * 2600
5380 * 2600 * 2500
6380 * 2600 * 2500
Workbench size
1800 * 500
2500 * 500
3000 * 500
3500 * 500
4500 * 500
Spindle nose end to countertop
four hundred and fifty
four hundred and fifty
four hundred and fifty
four hundred and fifty
four hundred and fifty
X/Y/Z stroke
1850 * 530 * 350
2530 * 530 * 350
3030 * 530 * 350
3530 * 530 * 350
4530 * 530 * 350
Maximum air travel speed
48000mm/min
48000mm/min
48000mm/min
48000mm/min
48000mm/min
Maximum processing speed
12000mm/min
12000mm/min
12000mm/min
12000mm/min
12000mm/min
control system
Deep carving CNC system
Deep carving CNC system
Deep carving CNC system
Deep carving CNC system
Deep carving CNC system
servo system
AC servo
AC servo
AC servo
AC servo
AC servo
System resolution
zero point zero zero one
zero point zero zero one
zero point zero zero one
zero point zero zero one
zero point zero zero one
Three axis verticality
0.015mm
0.015mm
0.015mm
0.015mm
0.015mm
Whole machine positioning accuracy
&Plusmn; 0.02mm
&Plusmn; 0.02mm
&Plusmn; 0.02mm
0.02mm
0.02mm
Localization accuracy
300± 0.01mm
300± 0.01mm
300± 0.01mm
300± 0.01mm
300± 0.01mm
Repetitive positioning accuracy
0.005mm
0.005mm
0.005mm
0.005mm
0.005mm
Number of spindles

1 & Nbsp;
1 unit
1 unit
1 unit
Spindle motor power
5.5KW
5.5KW
5.5KW
5.5KW
5.5KW
UFO type tool magazine
16 bit
16 bit
16 bit
16 bit
16 bit
Knife changing method
automatic
automatic
automatic
automatic
automatic
Spindle speed
20000rpm/min
20000rpm/min
20000rpm/min
20000rpm/min
20000rpm/min
Clamping tool handle
BT30
BT30
BT30
BT30
BT30
Knife alignment method
automatic
automatic
automatic
automatic
automatic
Loading height
350mm
350mm
350mm
350mm
350mm
The countertop bears a load
1500Kg
1500Kg
1500Kg
2000Kg
2500Kg
Rated voltage
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
Maximum power of the entire machine
32KW
18KW
18KW
22KW
22KW
Overall weight
5500Kg
7000Kg
8000Kg
9000Kg
10000kg
